大量批发，诚招经销商，量大价优！此价格为10片起的价格~！

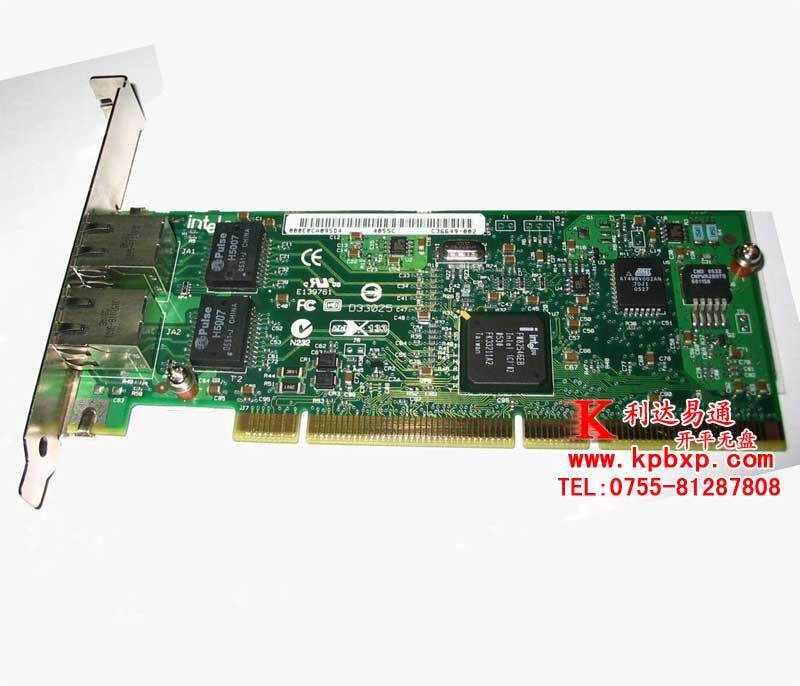

单件产品：PWLA8492MT*

• 使用单个PCI插槽提供两条千兆位铜缆服务器连接

• 特性与优点

千兆位铜缆布线优势

General
Product Codes Single Unit: PWLA8492MT*
*Bulk packs also available for minimum order quantities of five adapters. One driver CD per order of five units.

Connectors Two RJ-45
IEEE Standard/Network Topology
 10BASE-T, 100BASE-TX, 1000BASE-T

Wiring Cat-5, 4-pair
Adapter Product Features
Features

  Intel® SingleDriver™ technology1
 Plug and Play Specification Support
 Easy Installation, Intel® PROSet II Utility
 Auto-negotiation, Full-duplex Capable
 Includes a Low-profile and a Full-height Bracket

Cable Distance 100m
Network Management
Features

  Wired for Management (WfM) Baseline v2.0 Enabled for Servers
 DMI 2.0 Support, WMI and SNMP-manageable
 Offline Diagnostics
 Dynamic Cable Diagnostics
 Intel® Boot Agent (PXE 2.1 compliant)
 ACPI Power Management
 Wake on LAN*
 PXE 2.0

NOS Software Support
Platforms Supported

  Microsoft Windows* Server 2003 and 2000
 Microsoft Windows* XP 32- and 64-bit Editions
 Windows NT* 4.0
 Linux* 2.4.x or later (32- and 64-bit)
 FreeBSD 4.x or later
 Novell NetWare* 4.11, 4.2, 5.0, 5.1, 6.0
 SunSoft Solaris* 7, 8
 UnixWare* 7.x and OpenUNIX 8 (ddi8), SCO5*

Advanced Software Features
Features

  Adapter Fault Tolerance
 Switch Fault Tolerance
 Adaptive Load Balancing
 Fast EtherChannel* (when used with a capable switch)
 Gigabit EtherChannel* (when used with a capable switch)
 IEEE 802.3ad (when used with a capable switch)
 Test Switch Configuration
 PCI Hot Plug* and Active PCI*
 IEEE 802.1Q VLANs
 IEEE 802.3x Flow Control
 TCP Checksum Offload
 IEEE 802.1p
 TCP Segmentation/Large Send Off-load
 Interrupt Moderation
 Save and Restore

Technical Features
Data Rate(s) Supported per Port 10,100,1000Mbps
Bus Type PCI/PCI-X
Bus Width 32- or 64-bit
Bus Speed (MHz) 33/66/100/133
Onboard Memory 128 KB
Interrupt Levels INTA
IEEE Support 802.3ab
Hardware Certifications FCC A, CE
Data Transfer Mode Bus-master DMA
Controller—Processor Intel ® 82546
Typical Power Consumption 1A at +5VDC
Operating Temperature 0-55°C
Operating Humidity

 85% at +55°C

Physical Dimensions
Length 16.5cm (6.6 in)
Width 6.4cm (2.5 in)
Height of Full-Height End Bracket 12.1cm (4.75 in)
Height of Low-Profile End Bracket 8.1cm (3.2 in)
Intel Backing
Features

  Limited Lifetime Warranty
 90-day Money-back Guarantee
(U.S. and Canada only)
